DANTE-MY16-AUD2 16-Channel Dante Network I/O Card
Daisy Chain Configuration(Switched Mode)
![](/da/files/app_dante-my16-aud2_ph_02_572x124_0716ad5942ef59a916668740b15f8603.jpg)
Glitch-free Dante Redundancy
![](/da/files/app_dante-my16-aud2_ph_01_740x300_35040632c8616c9191a30705dc86827b.jpg)

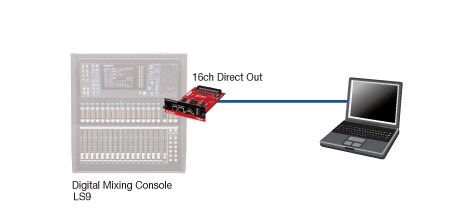

16-channel Live Recording
![](/da/files/app_dante-my16-aud_ph_01_471x221_16ee1a44863fa9d7860ec5ef9ab11339.jpg)
48-channel Live Recording
![](/da/files/app_dante-my16-aud_ph_02_471x221_f689fc8d3d55baf94cc164f6b9ae1ff8.jpg)
Live SR System
![](/da/files/app_dante-my16-aud_ph_03_470x241_33a3fa29ca46b3805f755d194c332ae9.jpg)
Installed Sound
![](/da/files/app_dante-my16-aud_ph_04_470x265_34f58a2ec6674e3e57f73a4261d858bb.jpg)
HA Remote Chain Example
In this figure, a Yamaha LS9 console is acting as the HA Remote controller. It is connected via the primary Ethernet port on the installed Dante-MY16-AUD card to a network switch. The Dante-MY16-AUD card is set to HA Remote Mode 2, via Dante Controller (For detail, please see Dante-MY16-AUD User Guide v1.23)
![](/da/files/app_dante-my16-aud_ph_05_470x292_8532ce008878590d13fb11e1b3391391.jpg)
