YH-C3000 BEHIND THE SCENES

MESSAGE FROM THE DEVELOPERS

— THE INSPIRATION FOR THE YH-C3000 —

Even with music you've heard countless times, these headphones let you experience it anew—revealing fresh details and bringing unexpected joy. In order to realize this wonderful musical experience, we have paid meticulous attention to every aspect of the YH-C3000, from the sound quality to the comfort and design. We hope that the YH-C3000 will accompany you during those rich, irreplaceable times when you can forget about everything and simply immerse yourself in your favorite music.

RYO HADANO

Product Chief Engineer

Aiming to provide a musical experience where you can lose track of time and get lost in deep enjoyment of the music, we pursued the optimum solution for closed-type headphones with the YH-C3000. Inside the seemingly simple housing, you will find the challenges we faced and the ingenuity we applied. As your ears are surrounded by the elegantly shaped housing, we hope you’ll find yourself returning to the vibrant sound again and again—always discovering something new.

HIROSHI NAKASHIMA

Diaphragm Development

The diaphragm of the Armodynamic® driver installed in the YH-C3000 is a masterpiece that we at Yamaha take particular pride in, finally completing it after about 10 years of development. In order to create a structure that balances the three elements required for good sound reproduction—rigidity, light weight, and optimal internal loss—we devised a method to combine layers with different characteristics into one diaphragm, rather than using a single-material diaphragm. This resulted in a smooth tone with high resolution, and also excellent responsiveness. Seeing a project years in the making finally come to life is truly gratifying. We hope these headphones bring the joy of music to as many people as possible.

YH-4000 headphones diaphragm engineer photograph

Yamaha High-End Headphones YH-C3000 | MESSAGE FROM THE DEVELOPERS

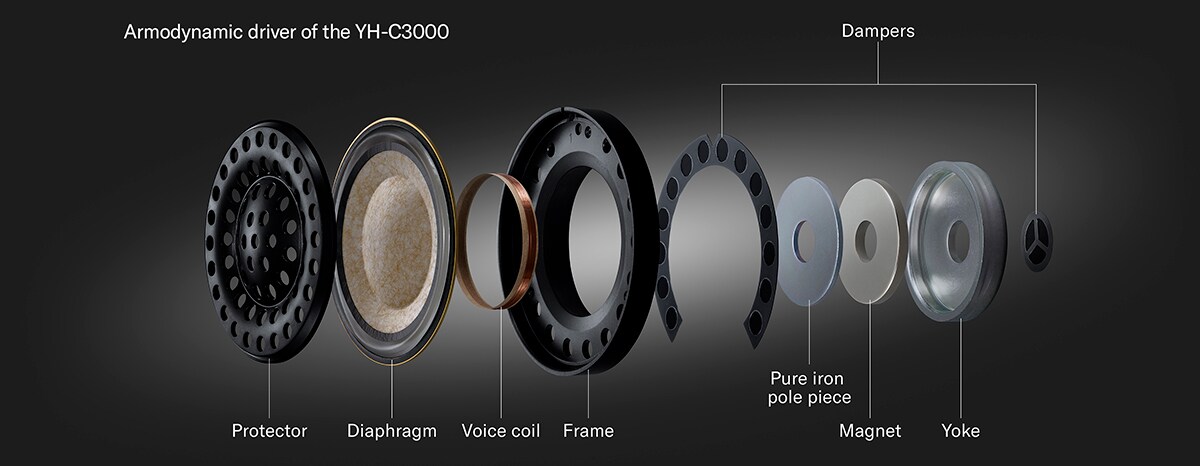

ALL ABOUT ARMODYNAMIC DRIVER

— IN PURSUIT OF FRESH, NEW MUSICAL EXPERIENCES —

The Armodynamic driver is the culmination of a decade-long research and development endeavor that united advanced Yamaha technology with a deep-rooted passion for music. This article explores the origin of its name, technical highlights and the story behind its creation.

WHAT IS THE ORIGIN OF THE NAME ARMODYNAMIC?

The prefix “armo” in Armodynamic driver comes from the Italian word “armonia,” meaning musical harmony. The diaphragm has been created by perfectly harmonizing multiple materials with different characteristics, such as PBO fiber ZYLON®*1, the world’s strongest fiber*2, as well as paper and resin which are light and flexible. The result is a diaphragm that skillfully harmonizes ideal diaphragm elements such as lightness, rigidity, and optimal internal loss. The very name Armodynamic driver reflects the perfectly harmonious sound that the diaphragm produces—sound that is smooth, spacious, and richly detailed.

*1 ZYLON® is a registered trademark of TOYOBO MC Corporation. (MHC25029)

*2 Comparative data among existing organic fibers (as of July 2025, according to TOYOBO MC Corporation)

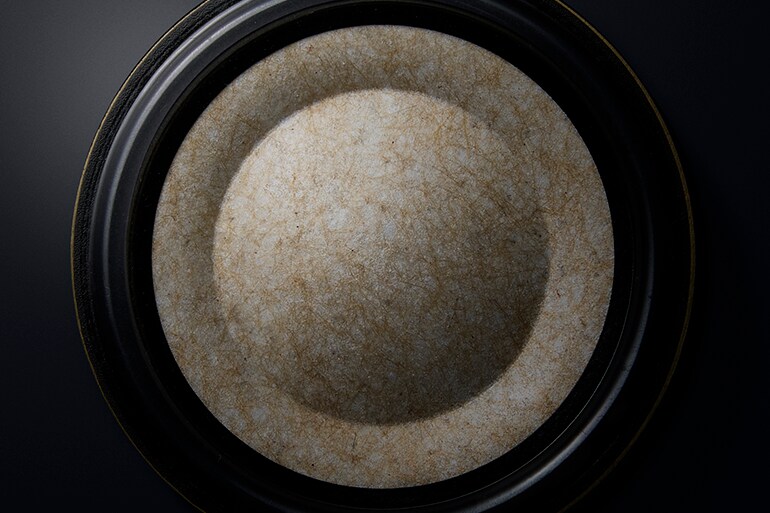

YH-C3000 headphones diaphragm photograph

UNIQUE THREE-LAYER DIAPHRAGM STRUCTURE COMBINING VARIOUS MATERIALS

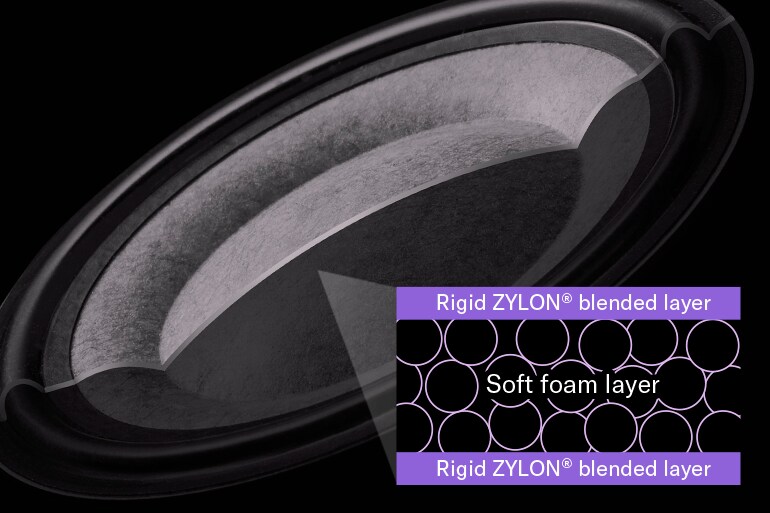

The newly developed diaphragm used in the Armodynamic driver is comprised of three thin layers of materials having different sound characteristics and layered together to form an integrated structure. The outer layer is light in weight with high rigidity and made of a mixture of PBO fiber ZYLON, paper, and resin for rapid response performance and high resolution. The inner layer is created from a foamed mixture of paper and resin, for light weight and moderate internal loss. By molding and sandwiching this lightweight foam layer between two high-rigidity layers for a three-layer structure, we have crafted a diaphragm having the ideal characteristics of lightness, rigidity, and optimal internal loss—for sound quality that cannot be attained by a single-material/single-layer diaphragm.

THE CULMINATION OF OVER 10 YEARS OF DEVELOPMENT

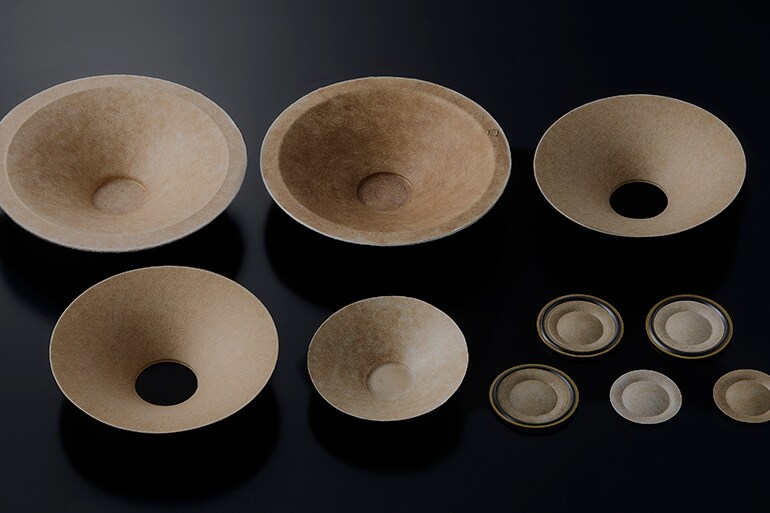

The original theme was to make a “light and rigid diaphragm.” This required going beyond the limits of a single-material diaphragm and rethinking the structure itself. Getting hints from nature — such as the structure of bamboo— and a sandwich-like layered structure used in aerospace materials; we began exploring technologies that could achieve both lightness and rigidity.

A major turning point came when we applied materials that focused on the patent for a particular insulation paper tray. This flexible perspective of developers bringing their research experience in different fields helped us find value in a field not usually considered in acoustic development. Furthermore, by blending the PBO fiber ZYLON cultivated in Yamaha speaker technology into the diaphragm, we found that the sound quality was dramatically improved, and a multi-layered diaphragm made of paper mixed with ZYLON was created.

To further optimize this technology for headphone diaphragms, we repeatedly conducted meticulous adjustments to the material composition and layer structure. Finally, to maximize the performance of the completed diaphragm, we made various adjustments into the driver unit itself—culminating in the creation of the Armodynamic driver, a true testament to years of research and innovation.

THE NEW SOUND OF YAMAHA HEADPHONES, A DEEPLY IMMERSIVE MUSIC EXPERIENCE

The Armodynamic driver delivers a harmoniously balanced sound—combining rich density, airy openness, and fast, precise response across all frequencies. It faithfully reproduces every nuance the artist intended, letting you lose yourself in a dynamic, lifelike soundstage. With these Yamaha headphones, music feels as if it’s unfolding right in front of you, in the very space where it was born—offering a deeply immersive and fresh listening experience.
