Indoor Stages / Houses of Worship [Small]

A compact and portable PA system with enough power for live band performance on a small outdoor stage for an audience of up to 100 people depending on seating/venue size.

- The system consists of a mixing console, 2x powered speakers, a powered subwoofer for front of house sound, and 2x powered speakers for monitoring.

- High-quality reverb and delay add natural depth and vibrancy to the sound with remarkably natural feel. [Mixing console MG16XU]

- Speaker system features D-CONTOUR intelligent dynamic control feature for consistent clarity at any output level. [Powered loudspeaker DHR15]

- Floor monitor speaker is optimized with 57° wedge angle. [Powered loudspeaker DHR12M]

Category Model Name Qty
Mixing Console MG16XU 1
Power Amplifier - -
Main Speaker DHR15 (Powered Speaker) 2
Subwoofer - -
Monitor Speaker DHR12M (Powered Speaker) 3

System

System

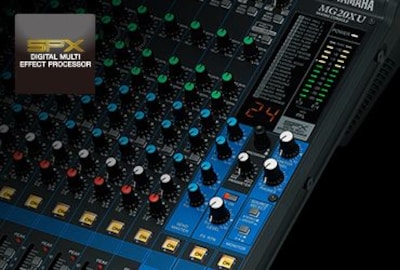

Built-in SPX Digital Effects

Built-in SPX Digital Effects

The MG16XU features Yamaha's acclaimed SPX digital multi-effect processor, offering a comprehensive suite of 24 editable digital effects perfect for enhancing your mix, whether adding depth to a speaking engagement or breathing new color and atmosphere into a live band performance. In particular, the high-quality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness.

Coaxial Compression Driver

Coaxial Compression Driver

DHR12M is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring.

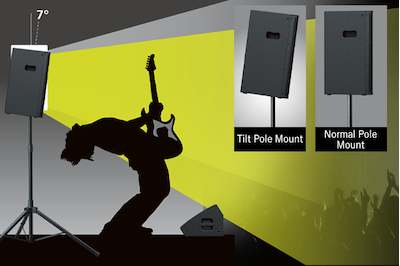

Dual-Angle Pole Mount Socket

Dual-Angle Pole Mount Socket

Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The DHR15's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.

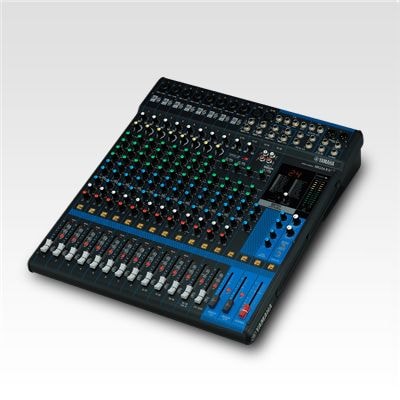

MG16XU

MG16XU

16-Channel Mixing Console

- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)

- 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

- 1-Knob compressors

- High-grade effects: SPX with 24 programs

- 24-bit/192kHz 2in/2out USB Audio functions

- Rack Mount Kit included

- MG REC/PLAY, Cubase AI and Cubasis LE available

DHR15

Yamaha Powered Loudspeaker DHR15

15” 2-way powered loudspeaker

- 1000 W Class-D amplifiers

- Maximum 131 dB SPL (peak)

- D-CONTOUR multi band dynamic processor

- Easy-to-use onboard 2-channel mixer

- Compact and lightweight (24.0 kg / 52.9 lbs)

- Durable plywood enclosure with polyurea coating

- Dual-Angle 35 mm pole mount socket

- Integrated M10 rigging points for suspended applications

DHR12M

Yamaha Powered Loudspeaker DHR12M

12” 2-way powered loudspeaker

- 1000 W Class-D amplifiers

- Coaxial compression driver

- Maximum 129 dB SPL (peak)

- D-CONTOUR multi band dynamic processor

- Easy-to-use onboard 2-channel mixer

- Compact and lightweight (16.5 kg / 36.4 lbs)

- Low profile and durable plywood enclosure with polyurea coating

- 35 mm pole mount socket
